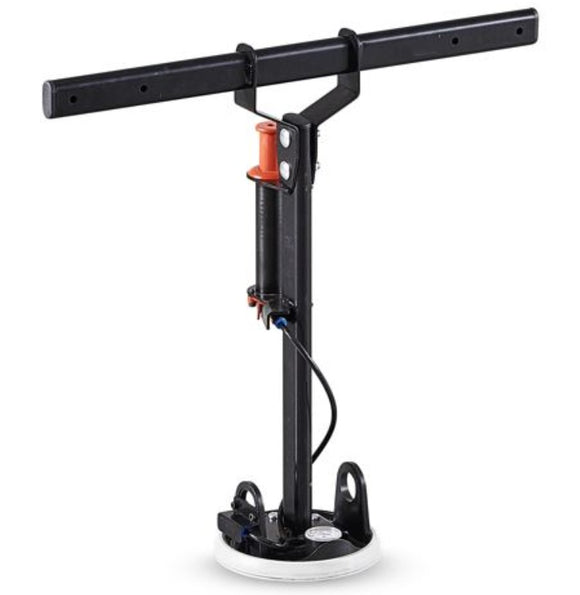

Raimondi TSS 110 lb. Tile and Slab Lifter

The Raimondi LTSSH Tile and Slab Lifter is designed for lifting, carrying, and positioning large-format ceramic tiles and slabs weighing up to 110 lbs.

It uses a manual hand-pump vacuum suction cup, so no battery or electrical power is required. The built-in vacuum gauge allows the installer to monitor suction while handling the tile.

The LTSSH can be configured for either one-person or two-person use. In the one-person configuration, it supports tiles up to 24" x 24". In the two-person configuration, it supports tiles up to 48" x 48".

Features

• Maximum recommended tile weight: 110 lbs.
• One-person maximum tile size: 24" x 24"
• Two-person maximum tile size: 48" x 48"
• Manual hand-pump vacuum suction cup
• No battery or electricity required
• Built-in vacuum gauge
• 6.875-inch suction cup
• Triple-lip, stain-free rubber
• Replaceable rubber suction cup
• Suitable for smooth or textured, non-porous ceramic tile
• Product weight: 11.2 lbs.

The suction cup has a nominal load capacity of 287 lbs., but Raimondi does not recommend using the lifter for tiles weighing more than 110 lbs.
