Tile Tools - Raimondi Bulldog Bullnose Machine, Single Motor

Raimondi

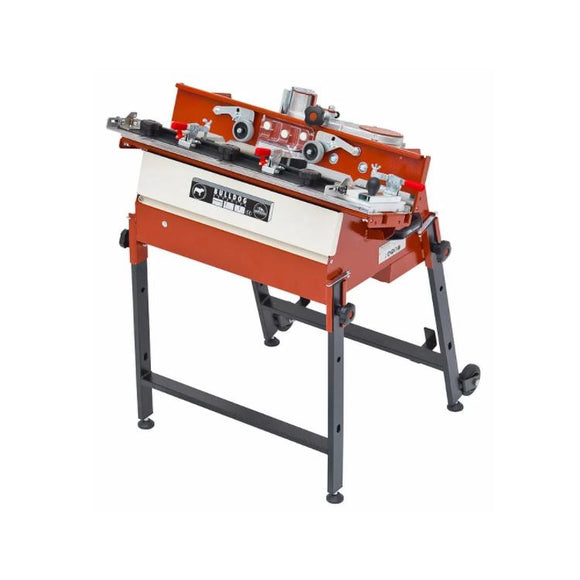

Raimondi Bulldog Bullnose Machine, Single Motor

$3,200.00
SKU: BD1WD

Bulldog Advance Bullnose Machine for profiling-beveling and finishing edges on porcelain, ceramic, glass tile, stone, marble, and granite. Bulldog profile machine can make half bullnose, full bullnose, 45º bevel, and finished flat edges. Make your own custom edges. The single motor machine, connectable in line provides 4 types of finishing, milled, rough, finished and Polished. Maximum profiling length 31-1/2". Maximum depth of shaping/radius 1-3/16". Heavy duty water pump provides superior wheel cooling. Provided with telescopic legs with a wheel kit for transportation. Different sizes of optional wheels (tooling) are available (Wheels not included with machine). Machine Specifications: Belt Driven 1-1/2 hp / 20 amps, Voltage 120 V, Max Length of Bullnose 31-1/2 in, Max Depth of Bullnose 1-3/16 in, RPM 3360 - motor / 5370 - wheel, Wheel Capacity 4-1/2 in-6-1/4 in, Arbor 20 mm, Dimensions 35-1/2 in x 31-1/2 in x 27-1/2 in and Weight 165 lbs, Comes with Raimondi Bulldog Advanced Bullnose Machine, 31 in. Sliding Table, Tool Kit, Dressing Stone, and Operator's Manual.
