$1,999.00
Save
$-1,999
5% Discount applied in cart.
Raimondi
SKU: LTTSXBOWW

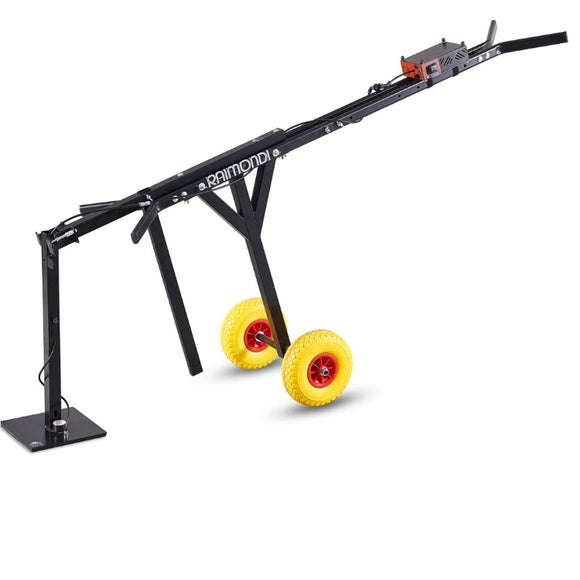

The Raimondi TSX assists with handling and installing tile up to 80 kg (176 lb) and 120 × 120 cm, approximately 48 × 48 inches.

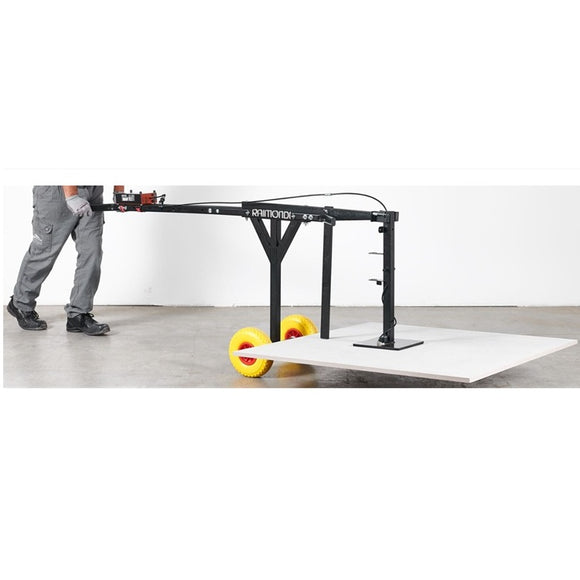

With the cart fitted, the TSX is designed for single-operator handling. Without the cart, two operators are required. It can pick up tile directly from pallets up to 50 cm (19.6 inches) high.
The rechargeable battery-powered vacuum system uses a 25 × 25 cm suction cup with a foam sealing ring for suitable non-porous materials, including textured tile. A vacuum gauge and non-return valve support vacuum monitoring.
Two large solid-rubber wheels help the cart move over rough surfaces. Protective tilting plates keep the suction cup away from damaging or dirty surfaces when not in use; disengage them during operation as instructed.
Raimondi’s recommended maximum tile weight is 80 kg (176 lb), not the suction cup’s higher nominal rating. Follow the manufacturer’s setup and operating instructions.
